Wire Rope Fittings

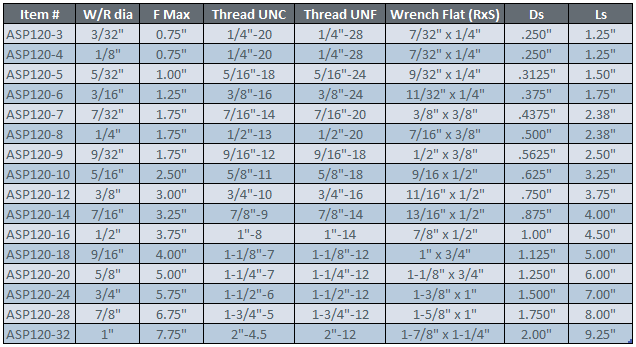

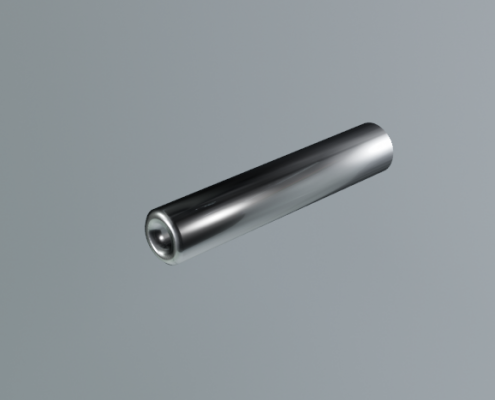

Threaded Sleeve ASP120

Manufactured from specially processed low carbon steel that is ideal for swaging. ASP120 Threaded Sleeves are furnished self-colored. Stainless Steel is available upon request. We supply Threaded Sleeves swaged onto wire rope and subsequently threaded after swaging. Right Hand UNC-2A (Coarse) and UNF-2A (Fine) threads are considered standard. Left Hand and metric threads are available upon request. Threaded Sleeve are supplied without wrench flats. Wrench flats available upon request.
