Wire Rope Fittings

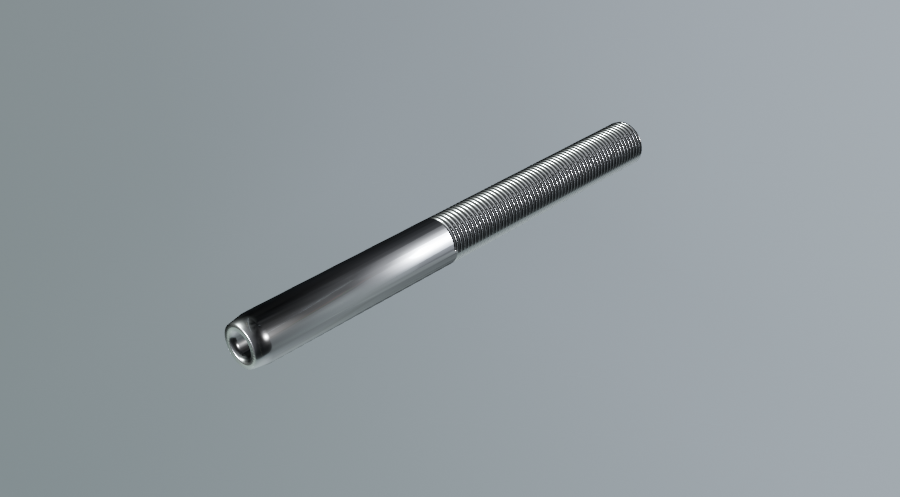

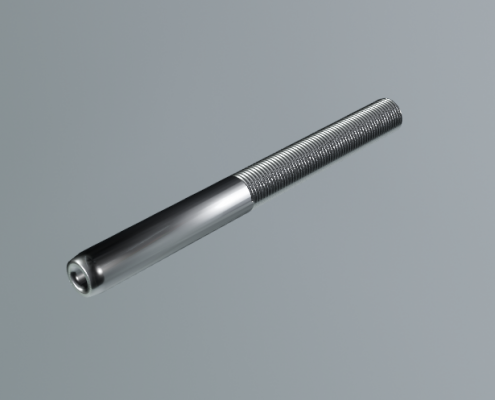

Standard Threaded Stud ASP134

Manufactured from specially processed low carbon steel that is ideal for swaging. Standard Threaded Studs (ASP134) are furnished self-colored.  Available in zinc-plated or galvanized finish. Stainless Steel is available upon request. Right Hand UNC-2A (Coarse) threads are standard. Left Hand, UNF-2A (Fine) and metric threads are available upon request. Supplied without wrench flats. Wrench flats available upon request. Refer to swaging die manufacturer for maximum allowable swage diameter.
